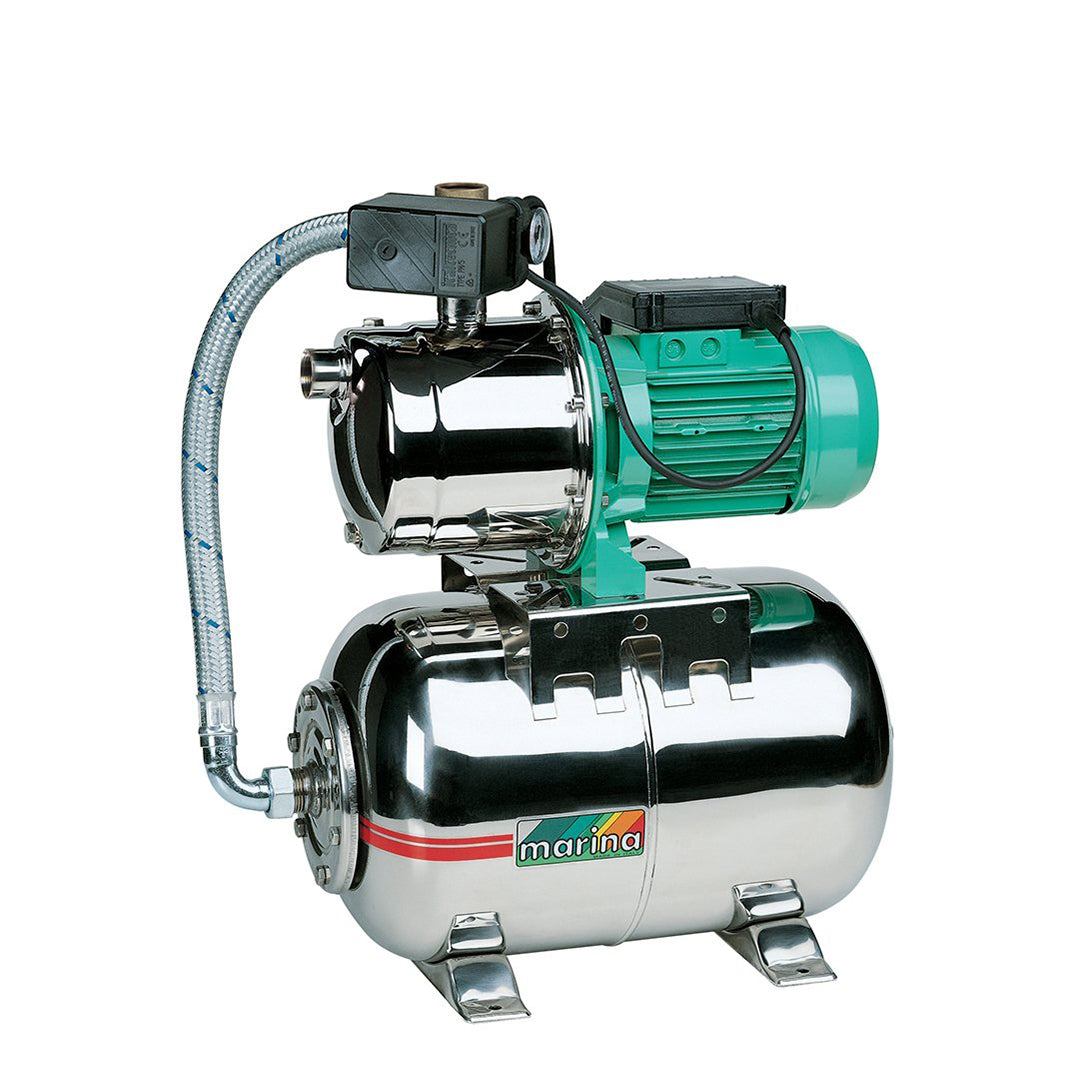

CAM-X Automatic Booster Pumps

Description

The CAM-X booster sets have a stainless-steel self-priming “jet” pump with a stainless steel pressure vessel, pre-assembled with pressure gauges, adjustable pressure switches and non-return valves. They are designed for pumping clean water only and suitable for industrial water boosting, pressur...

TECHNICAL DATA

  • Outlet (BSPF): 1"
  • Inlet (BSPF): 1" - 1 1/4"
  • Motor output (kW): 0.75 - 1.1
  • Max head (m): 32
  • Phases: 1
  • Max flow (I/min): 60 - 90
  • Vessel size (ltrs): 25
  • Surface Pump CAM-X Automatic Booster Pump- stainless steel
  • CAM-X Automatic Booster Pump- stainless steel
1 2
£599.00 GBP
£599.00 GBP
Sale Sold out
Excluding VAT
View full details
  • Surface Pump CAM-X Automatic Booster Pump- stainless steel
  • CAM-X Automatic Booster Pump- stainless steel

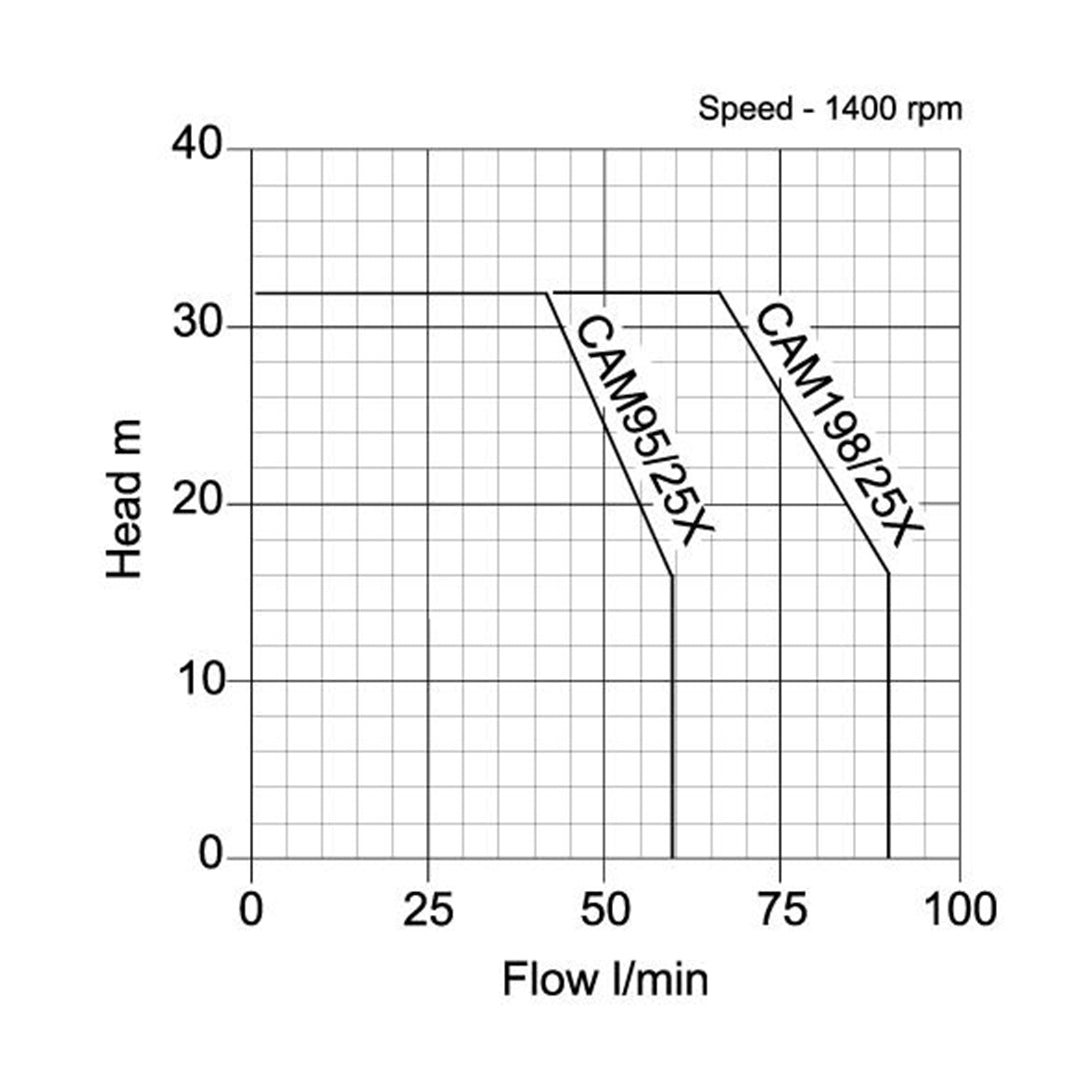

PERFORMANCE CURVE
SPECIFICATIONS

CAM 95/25X

Item CodeModelInlet (mm)Outlet (mm)KWVolt (v)Flow (l/min)Head (metres)Switch pre-setVessel / Well / Bore hole sizeWidth (mm)Length (mm)Dry weight (kg)Packing weight
19-15-1255CAM 95/25X 1" 1" 0.75230V60321.6(on)-23.2(off)25ltr27053016.718.7

CAM 198/25X

Item CodeModelInlet (mm)Outlet (mm)KWVolt (v)Flow (l/min)Head (metres)Switch pre-setVessel / Well / Bore hole sizeWidth (mm)Length (mm)Height (mm)Dry weight (kg)
19-15-1110CAM 198/25X 1¼"1" 1.1230V90321.6(on)-23.2(off)25ltr27053057519.9

model

w X l X h (mm)

CAM-X

270x530x575
