Name: CA(M) Self Priming Jet Pumps Stainless Steel
Brand: Speroni
SKU: 19-15-1209
Price: 202.0 GBP
Availability: InStock

Description

The CA(M) series are single stage, self-priming “jet” pumps with stainless-steel bodies. The pumps offer a wide pressure range for industrial boosting purposes, while their low operating noise, low power consumption and light weight also make them popular for a variety of domestic and horticul...

TECHNICAL DATA

Outlet (BSPF): 1"
Inlet (BSPF): 1" - 1 1/4"
Motor output (kW): 0.6 - 1.1
Max head (m): 38 - 56
Phases: 1 & 3
Max flow (I/min): 55 - 87

1 4

£202.00 GBP

Sale Sold out

Excluding VAT

Product variants

Quantity

View full details

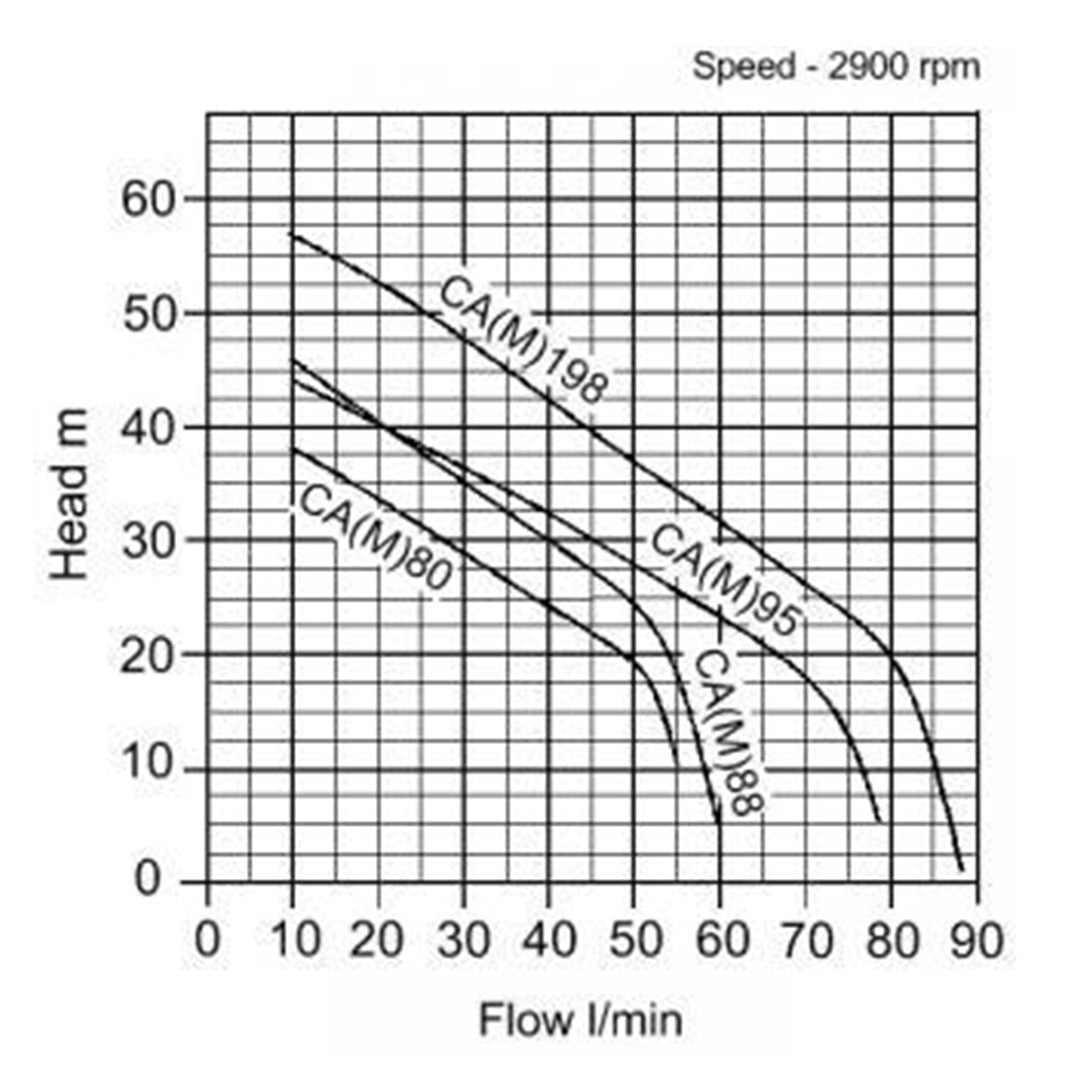

PERFORMANCE CURVE

SPECIFICATIONS

Catalogue

CA(M) Catalogue Page

Tsurumi Catalogue 2024 - Page 114

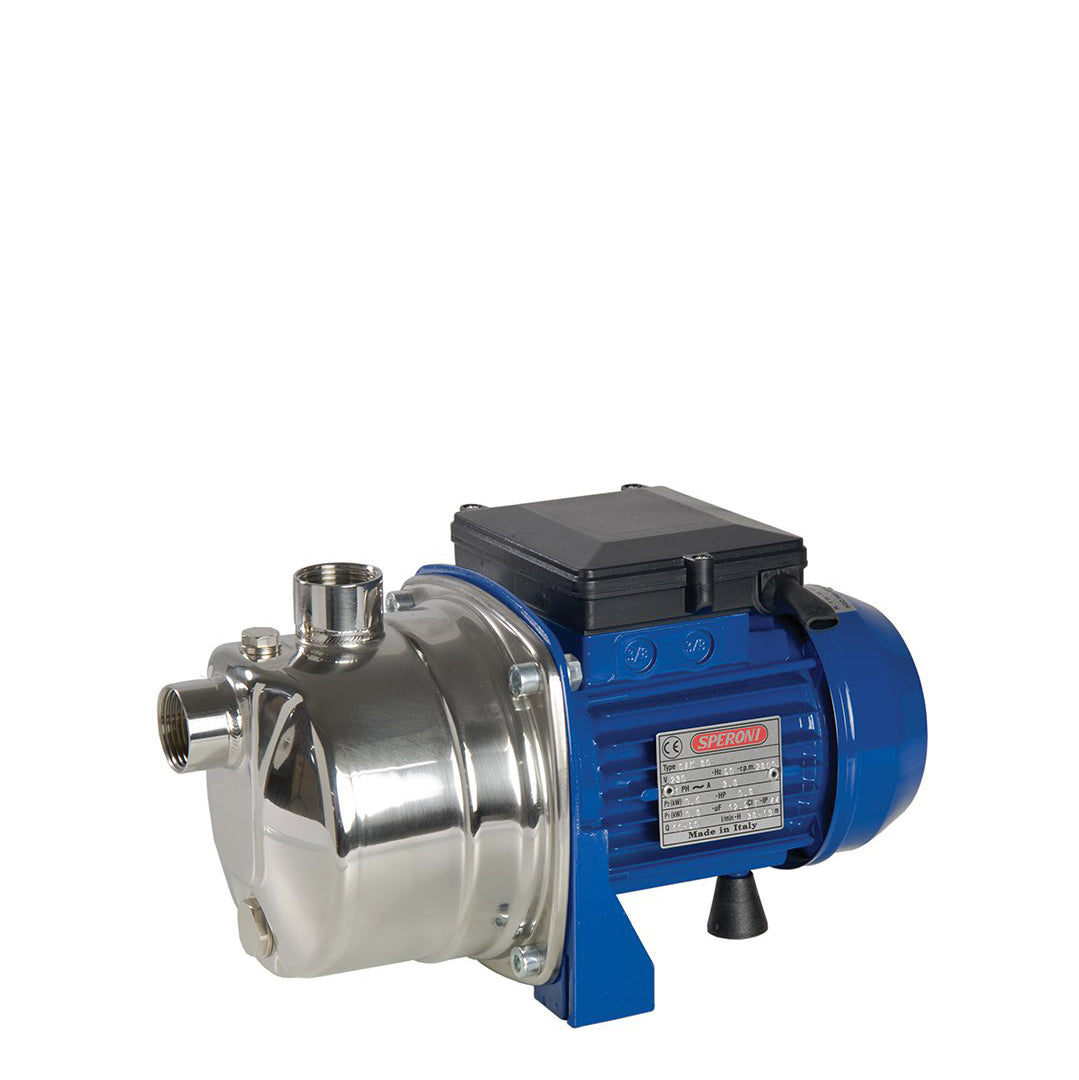

CAM80

Item code	Model	Inlet (BSPF)	Outlet (BSPF)	Volt (v)	kW	Flow (l/min)	Head (metres)	Width (mm)	Length (mm)	Height (mm)	Dry weight (kg)
19-15-1209	CAM80	1"	1"	110V	0.6	55	38	166	320	180	6.1
19-15-1204	CAM80	1"	1"	230V	0.6	55	38	166	320	180	6.1

CA80

Item code	Model	Inlet (BSPF)	Outlet (BSPF)	Volt (v)	kW	Flow (l/min)	Head (metres)	Width (mm)	Length (mm)	Height (mm)	Dry weight (kg)
19-15-1000	CA80	1"	1"	400V	0.6	55	38	166	320	180	6.1

CA80 Data Sheet

CAM88

Item code	Model	Inlet (BSPF)	Outlet (BSPF)	Volt (v)	kW	Flow (l/min)	Head (metres)	Width (mm)	Length (mm)	Height (mm)	Dry weight (kg)
19-15-1238	CAM88	1"	1"	110V	0.75	60	46	184	370	200	9.9
19-15-1254	CAM88	1"	1"	230V	0.75	60	46	184	370	200	9.9

CA88

Item code	Model	Inlet (BSPF)	Outlet (BSPF)	Volt (v)	kW	Flow (l/min)	Head (metres)	Width (mm)	Length (mm)	Height (mm)	Dry weight (kg)
19-15-1207	CA88	1"	1"	400V	0.75	60	46	184	370	200	9.9

CAM95

Item code	Model	Inlet (BSPF)	Outlet BSPF)	Volt (v)	kW	Flow (l/min)	Head (metres)	Width (mm)	Length (mm)	Height (mm)	Dry weight (kg)
19-15-1053	CAM95	1"	1"	110V	0.75	78	44	206	415	212	10
19-15-1218	CAM95	1"	1"	230V	0.75	78	44	206	415	212	10

CA95

Item code	Model	Inlet (BSPF)	Outlet (BSPF)	Volt (v)	kW	Flow (l/min)	Head (metres)	Width (mm)	Length (mm)	Height (mm)	Dry weight (kg)
19-15-1097	CA95	1¼"	1"	400V	0.75	78	44	206	415	212	10

CA95 Data Sheet

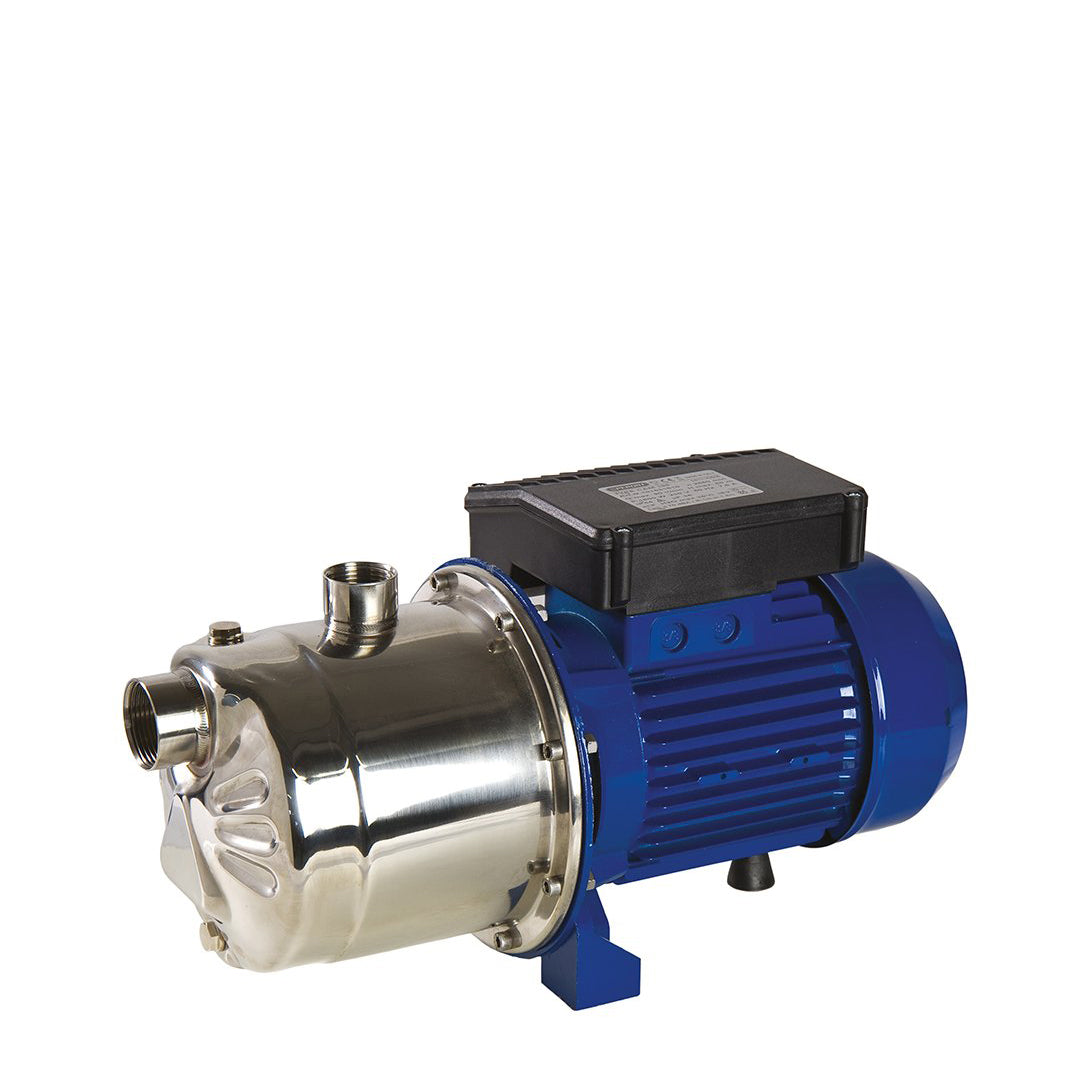

CAM198

Item code	Model	Inlet (BSPF)	Outlet (BSPF)	Volt (v)	kW	Flow (l/min)	Head (metres)	Width (mm)	Length (mm)	Height (mm)	Dry weight (kg)
19-15-1085	CAM198	1¼"	1"	230V	1.1	87	56	206	432	230	13.5

CA198

Item code	Model	Inlet (BSPF)	Outlet (BSPF)	Volt (v)	kW	Flow (l/min)	Head (metres)	Width (mm)	Length (mm)	Height (mm)	Dry weight (kg)
19-15-1278	CA198	1¼"	1"	400V	1.1	87	56	206	432	230	13.5
