CA(M) Self Priming Jet Pumps Cast Iron

Description

    The CA(M) series are single stage, self-priming “jet” pumps with cast-iron bodies. The pumps offer a wide pressure range for industrial boosting purposes, while their low operating noise, low power consumption also make them popular for a variety of domestic and horticultural applications. O...

TECHNICAL DATA

  • Outlet (BSPF): 1" - 1 1/4"
  • Inlet (BSPF): 1 - 1 1/4"
  • Motor output (kW): 0.6 - 2.2
  • Max head (m): 39 - 55
  • Phases: 1 & 3
  • Max flow (I/min): 52 - 250

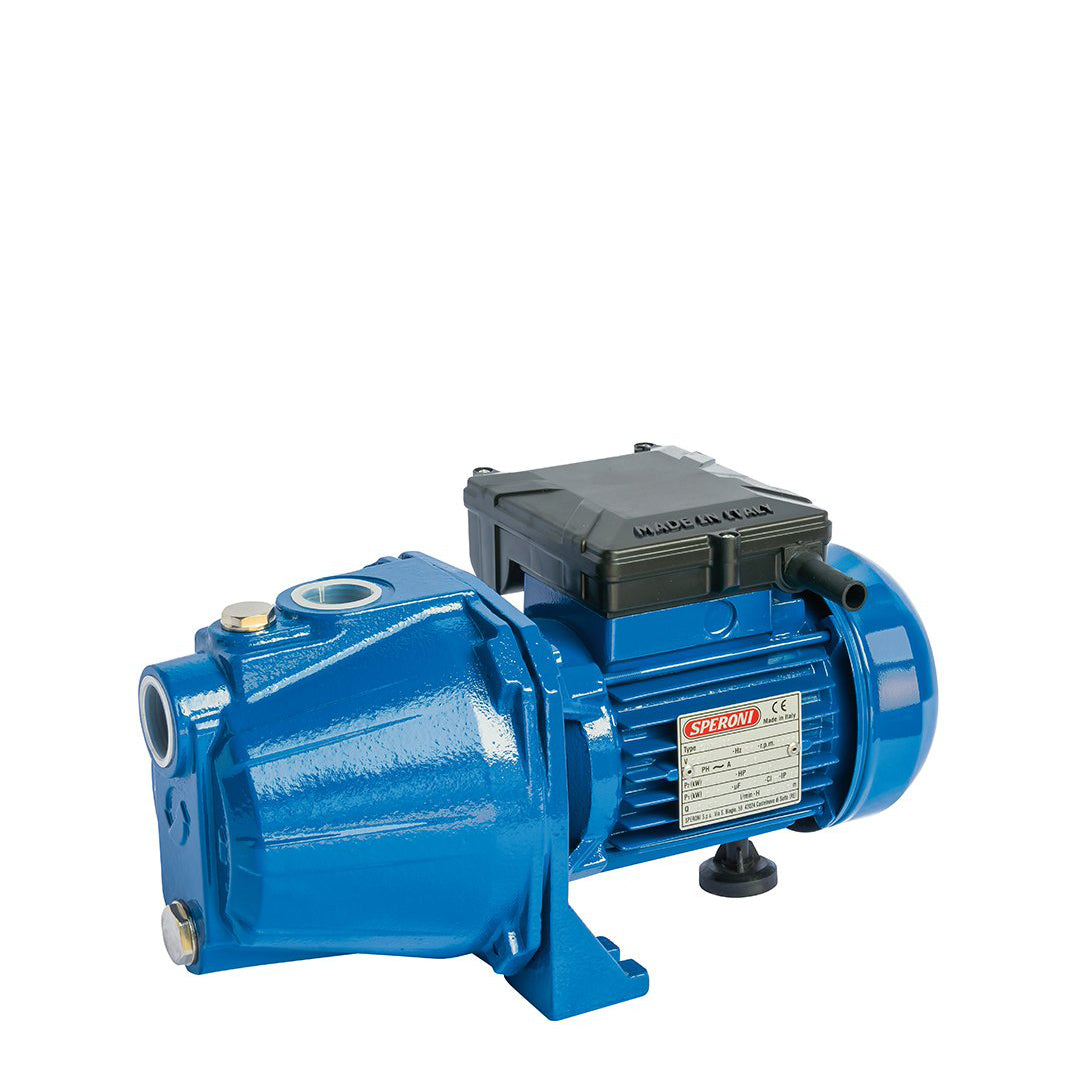

  • Speroni Blue CA(M)40 Self Priming Jet Pumps Cast Iron

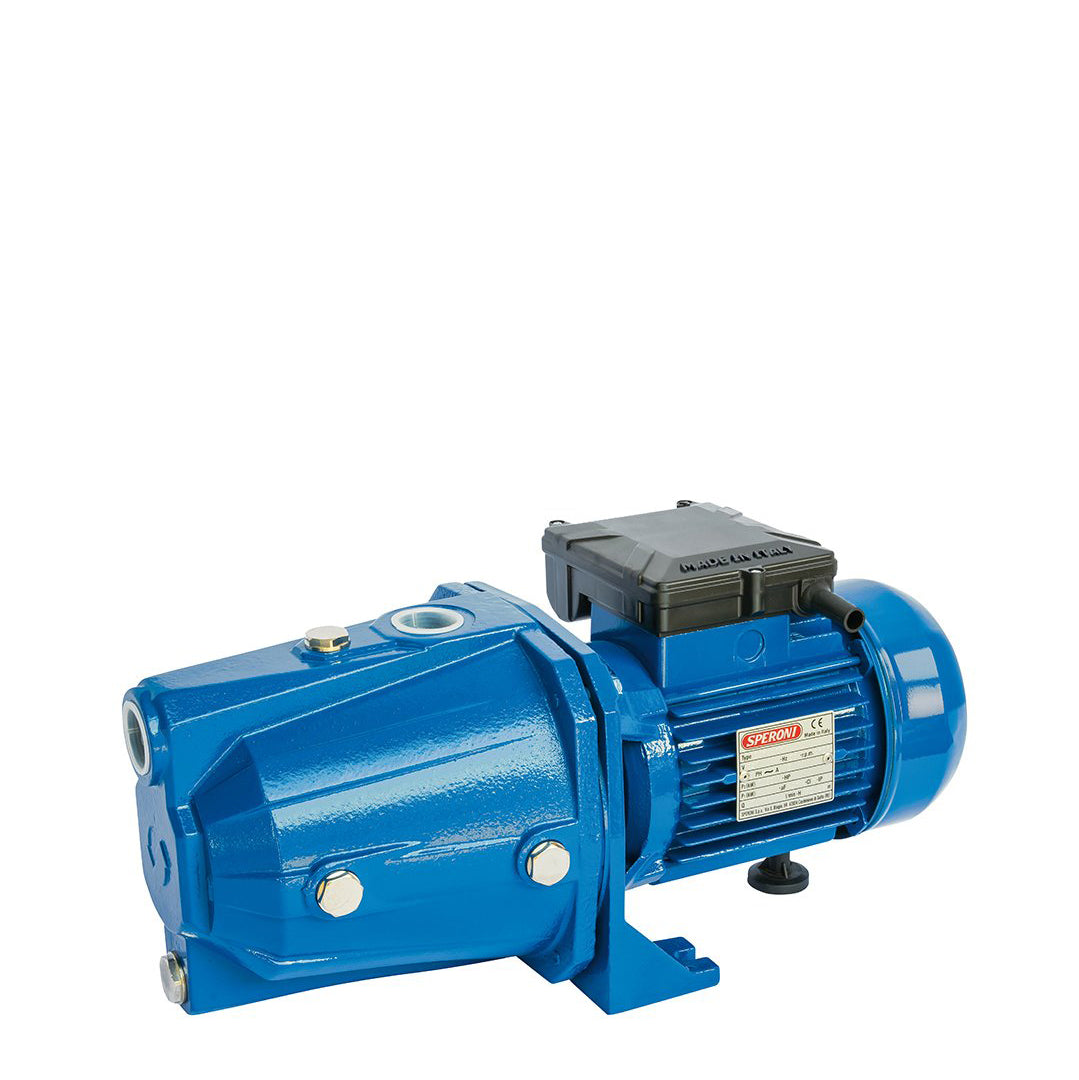

  • Speroni Blue CA(M) Self Priming Jet Pumps Cast Iron

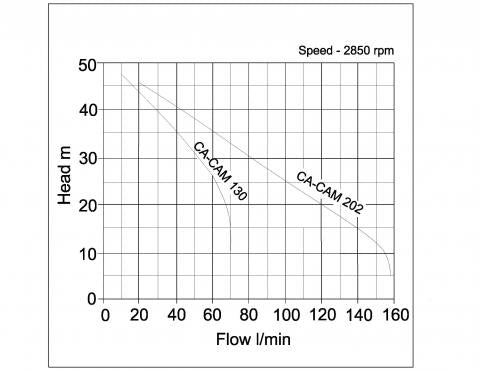

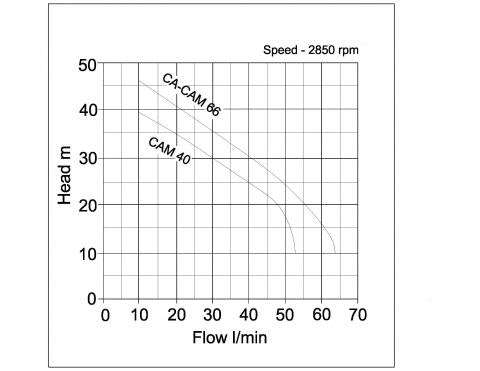

  • CA (M) Self Priming Jet Pumps Cast Iron - pump curve graph 1
  • CA (M) Self Priming Jet Pumps Cast Iron - pump curve graph 2
1 5
£159.00 GBP
£159.00 GBP
Sale Sold out
Excluding VAT
View full details
  • Speroni Blue CA(M)40 Self Priming Jet Pumps Cast Iron
  • Speroni Blue CA(M) Self Priming Jet Pumps Cast Iron
  • CA (M) Self Priming Jet Pumps Cast Iron - pump curve graph 1
  • CA (M) Self Priming Jet Pumps Cast Iron - pump curve graph 2

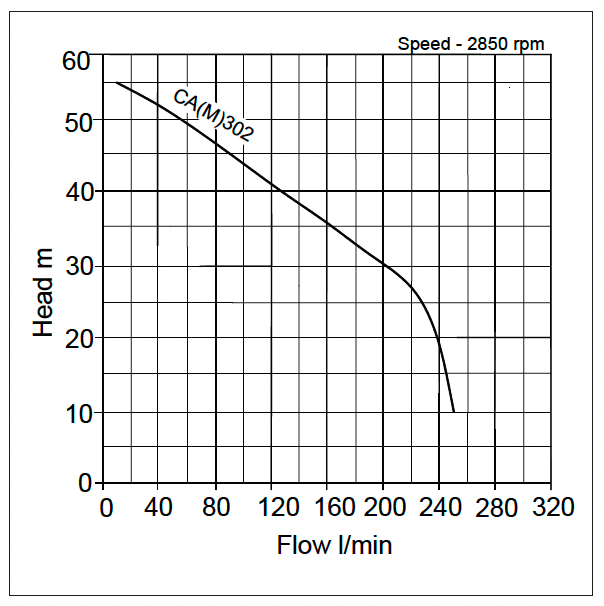

PERFORMANCE CURVE
SPECIFICATIONS

CAM40

Item CodeModelOutlet (BSPF)Inlet (BSPF)KWVolt (v)Flow (l/min)Head (metres)Width (mm)Length (mm)Height (mm)Dry weight (kg)
19-15-1149CAM401"1"0.6230V52391623281939.1

CAM66

Item CodeModelOutlet (BSPF)Inlet (BSPF)KWVolt (v)Flow (l/min)Head (metres)Width (mm)Length (mm)Height (mm)Dry weight (kg)
19-15-1089CAM661"1"0.7230V644717637321012.5

CA66

Item CodeModelOutlet (BSPF)Inlet (BSPF)KWVolt (v)Flow (l/min)Head (metres)Width (mm)Length (mm)Height (mm)Dry weight (kg)
19-15-1269CA661"1"0.7400V644717637321012.5

CAM130

Item CodeModelOutlet (BSPF)Inlet (BSPF)KWVolt (v)Flow (l/min)Head (metres)Width (mm)Length (mm)Height (mm)Dry weight (kg)
19-15-1242CAM1301"1"1230V704817642119415.5

CA130

Item CodeModelOutlet (BSPF)Inlet (BSPF)KWVolt (v)Flow (l/min)Head (metres)Width (mm)Length (mm)Height (mm)Dry weight (kg)
19-15-1245CA1301"1"1400V704817642119415.5

CAM202

Item CodeModelOutlet (BSPF)Inlet (BSPF)KWVolt (v)Flow (l/min)Head (metres)Width (mm)Length (mm)Height (mm)Dry weight (kg)
19-15-1235CAM2021"1¼"1.5230V1584623657027440

CA202

Item CodeModelOutlet (BSPF)Inlet (BSPF)KWVolt (v)Flow (l/min)Head (metres)Width (mm)Length (mm)Height (mm)Dry weight (kg)
19-15-1264CA2021"1¼"1.5400V1584623657027440

model

w X l X h (mm)

CAM40

162x328x193

CA(M)66

176x352x210

CA(M)130

176x421x194

CA(M)202

206x505x217

CA(M)302

225x525x230
