CAM/25 Self-Priming Jet Pump

Description

The CAM88/25 incorporates self-priming “jet” pumps with pressure vessels, pressure gauges, adjustable pressure switches and non-return valves, ready assembled for installation. With plastic connections and a butyl bladder, there is no water contact with the steel vessel creating an uncontaminat...

TECHNICAL DATA

  • Outlet (BSPF): 1"
  • Inlet (BSPF): 1"
  • Motor output (kW): 0.75
  • Max head (m): 32
  • Phases: 1
  • Max flow (I/min): 60
  • Vessel size: 25

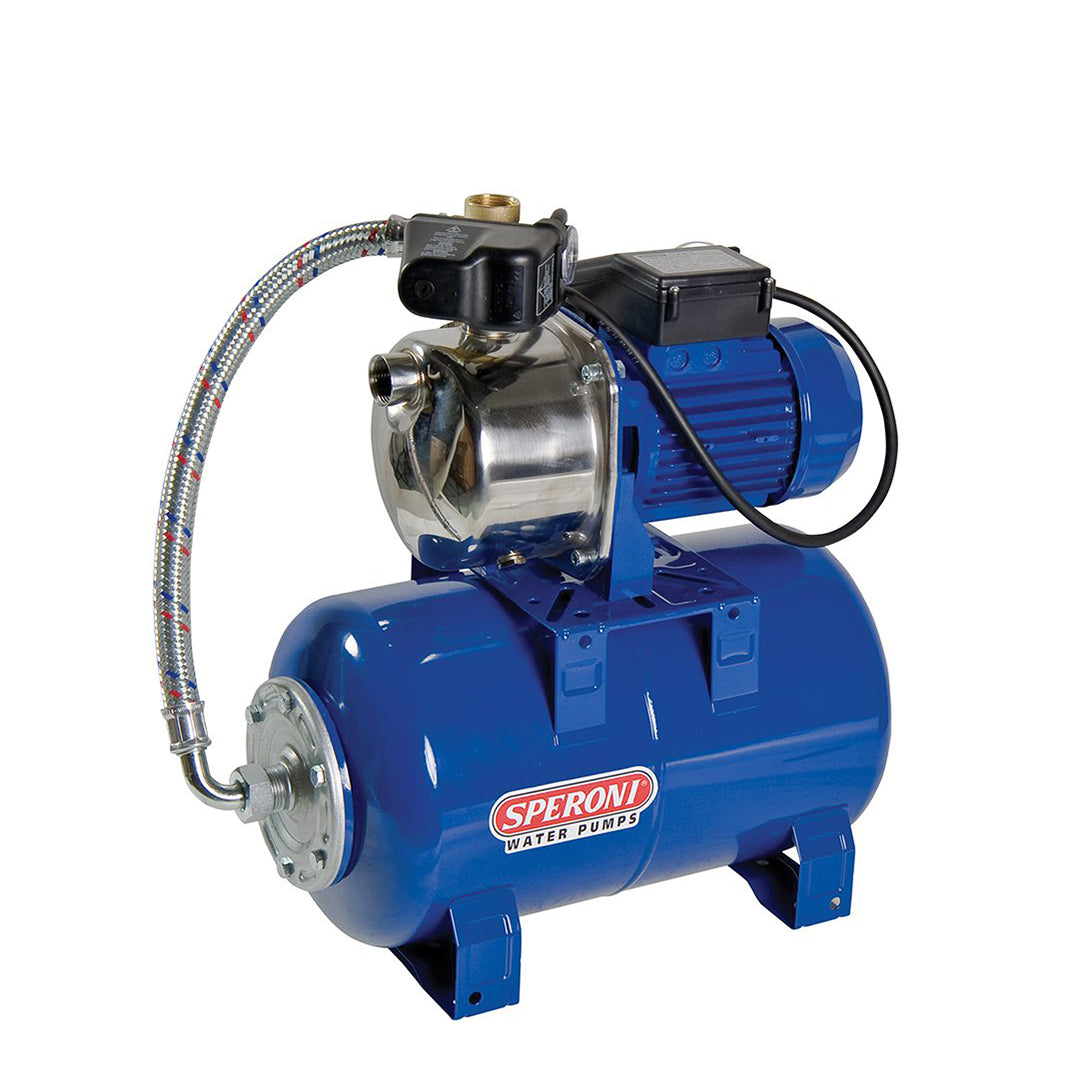

  • Speroni Blue CAM88/25 Self-Priming Jet Pump

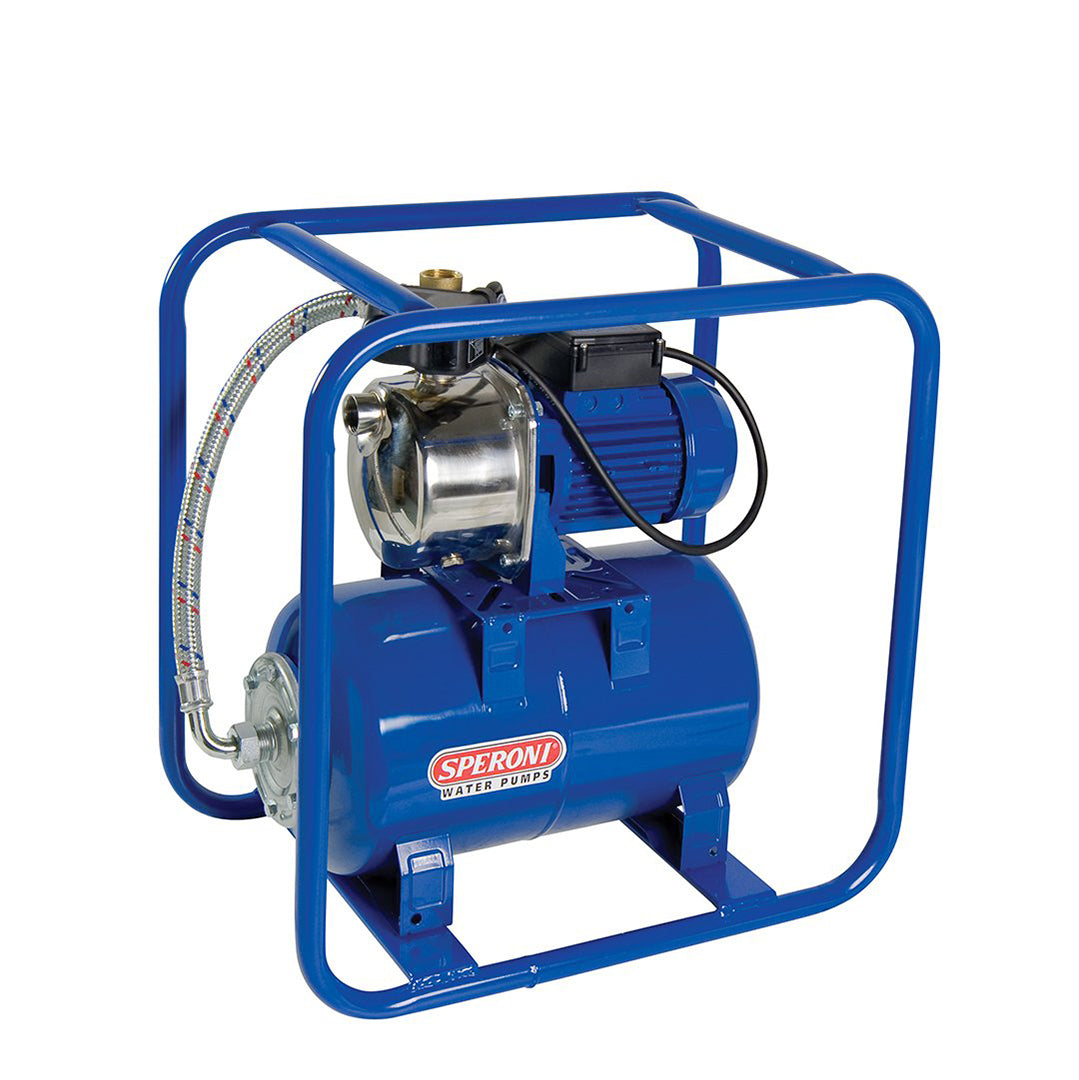

  • Speroni Blue CAM88/25 Self-Priming Jet Pump- in tubular frame

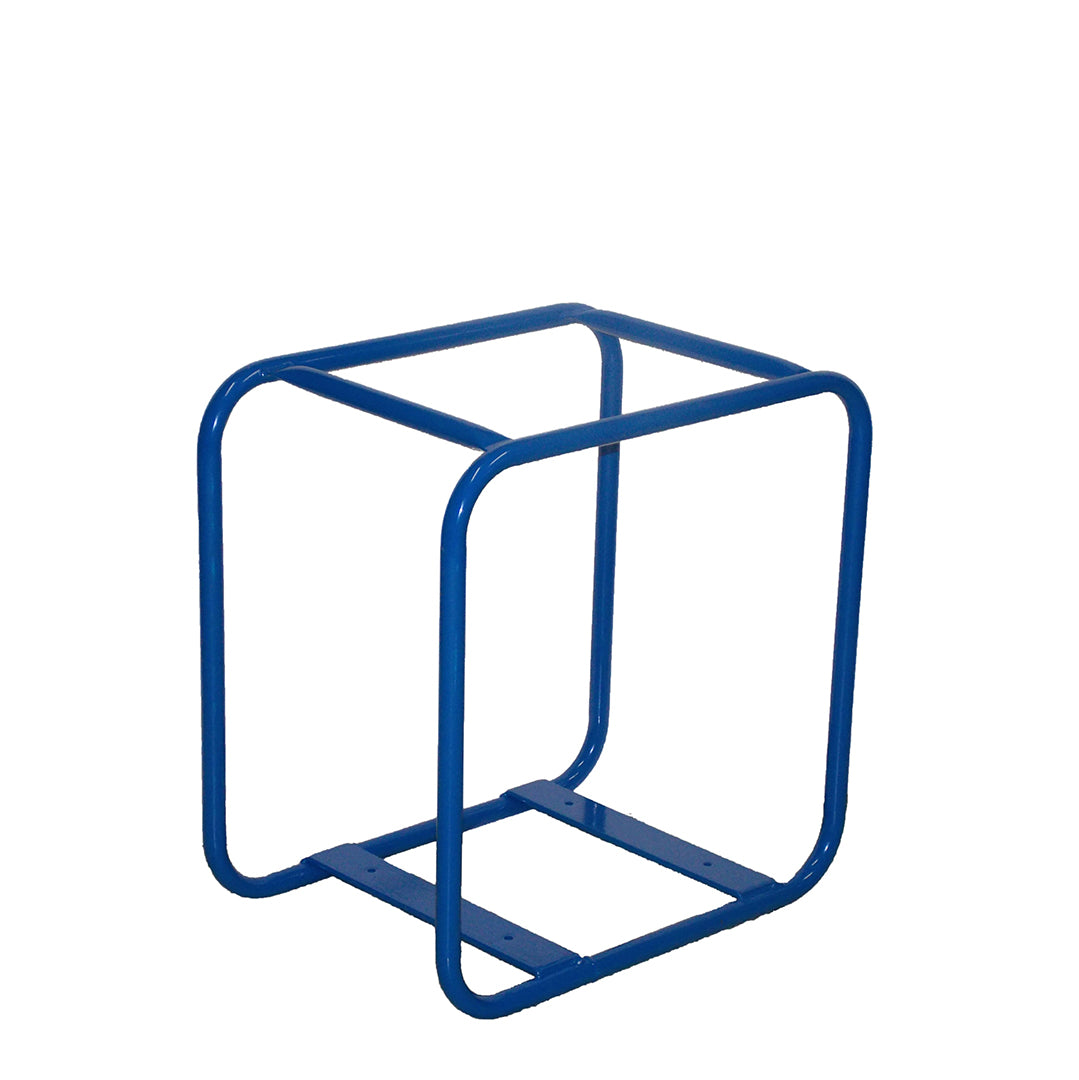

  • Full protection, blue tubular frame, CAM88/25 optional extra
  • CAM/25 Self-Priming Jet Pump- pump curve
1 4
£391.00 GBP
£391.00 GBP
Sale Sold out
Excluding VAT
View full details
  • Speroni Blue CAM88/25 Self-Priming Jet Pump
  • Speroni Blue CAM88/25 Self-Priming Jet Pump- in tubular frame
  • Full protection, blue tubular frame, CAM88/25 optional extra
  • CAM/25 Self-Priming Jet Pump- pump curve

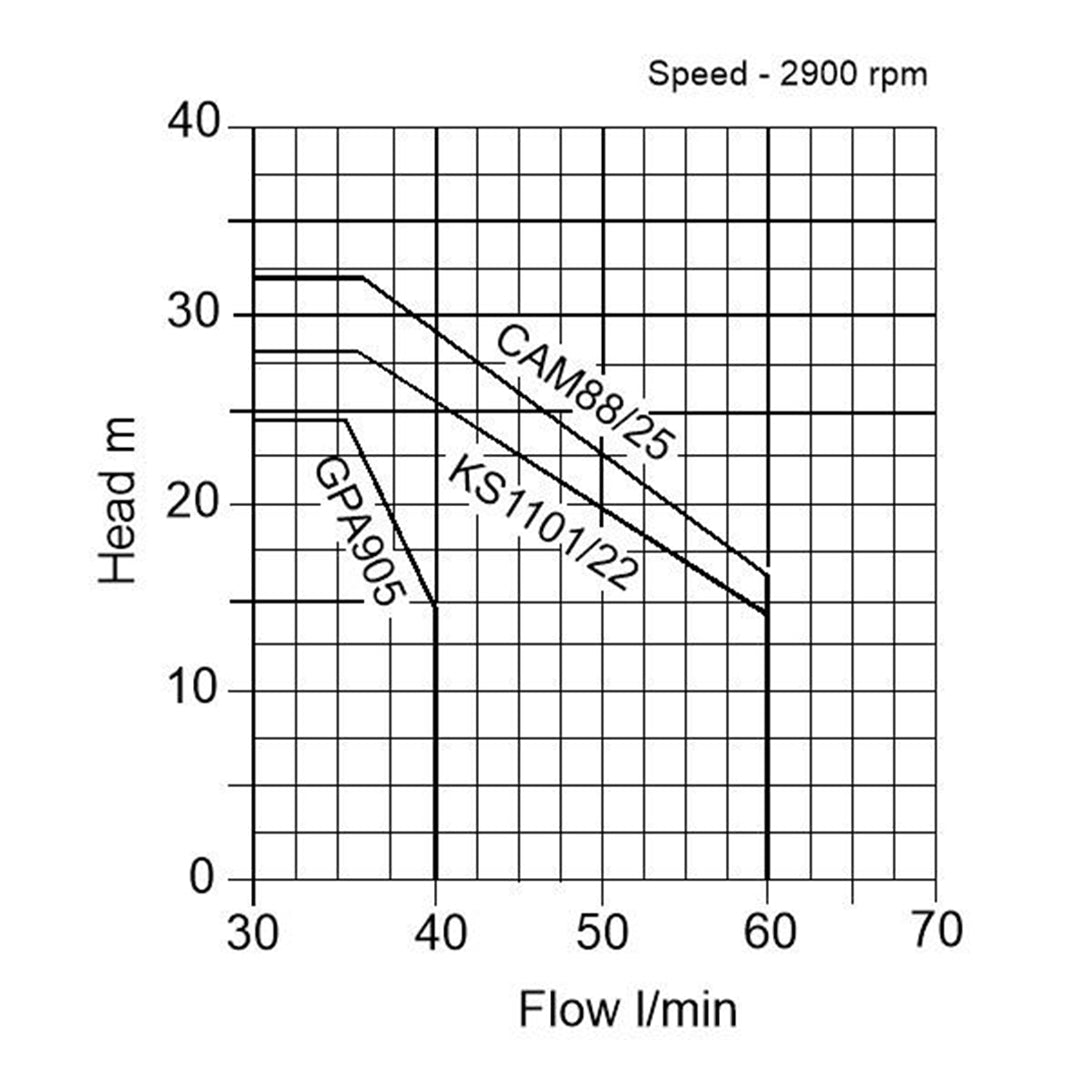

PERFORMANCE CURVE
SPECIFICATIONS

Specifications

Item CodeModelInlet (mm)Outlet (mm)KWVolt (v)Flow (l/min)Head (mtrs)Switch Pre-Set (bar)Vessel Size (Lts)Width (mm)Length (mm)Height (mm)Dry weight (kg)
19-15-1285CAM88/25 1"1"0.75110V60321.6 (on) 3.2 (off)2527053054017
19-15-1115CAM88/251"1"0.75230V60321.6 (on) 3.2 (off)2527053054056

model

w X l X h (mm)

CAM88/25

270x530x540
