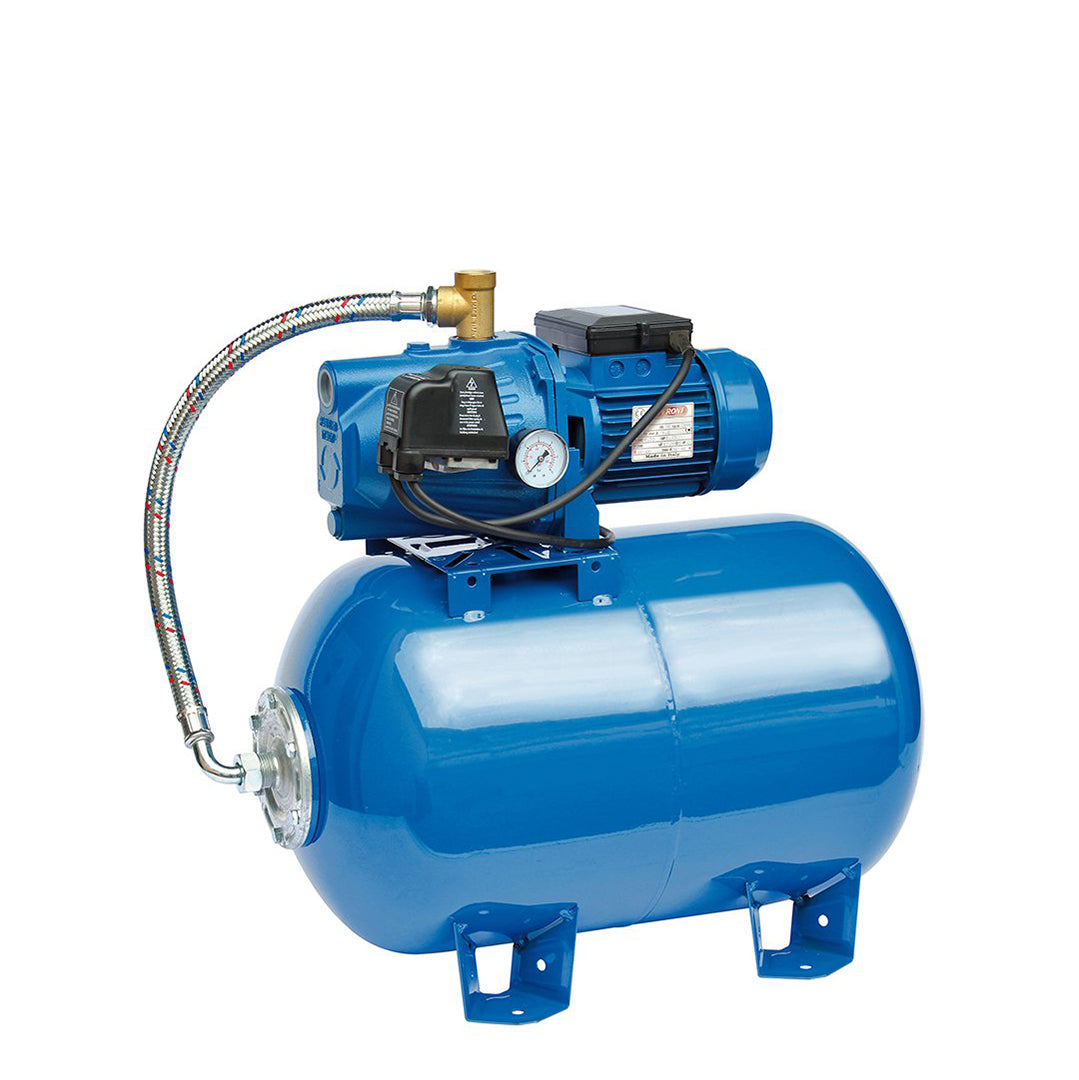

CAM/60 Self-Priming Jet Pump

Description

The CAM152/60 incorporate self-priming “jet” pumps with pressure vessels, pressure gauges, adjustable pressure switches and non-return valves, ready assembled for installation. With plastic connections and a butyl bladder, there is no water contact with the steel vessel creating an uncontamina...

TECHNICAL DATA

  • Outlet (BSPF): 1"
  • Inlet (BSPF): 1 1/4"
  • Motor output (kW): 1.5
  • Max head (m): 32
  • Phases: 1
  • Max flow (I/min): 125
  • Vessel size (ltrs): 60
Skip to product information
1 of 2
Regular price £621.00 GBP
Regular price Sale price £621.00 GBP
Sale Sold out
Excluding VAT
View full details

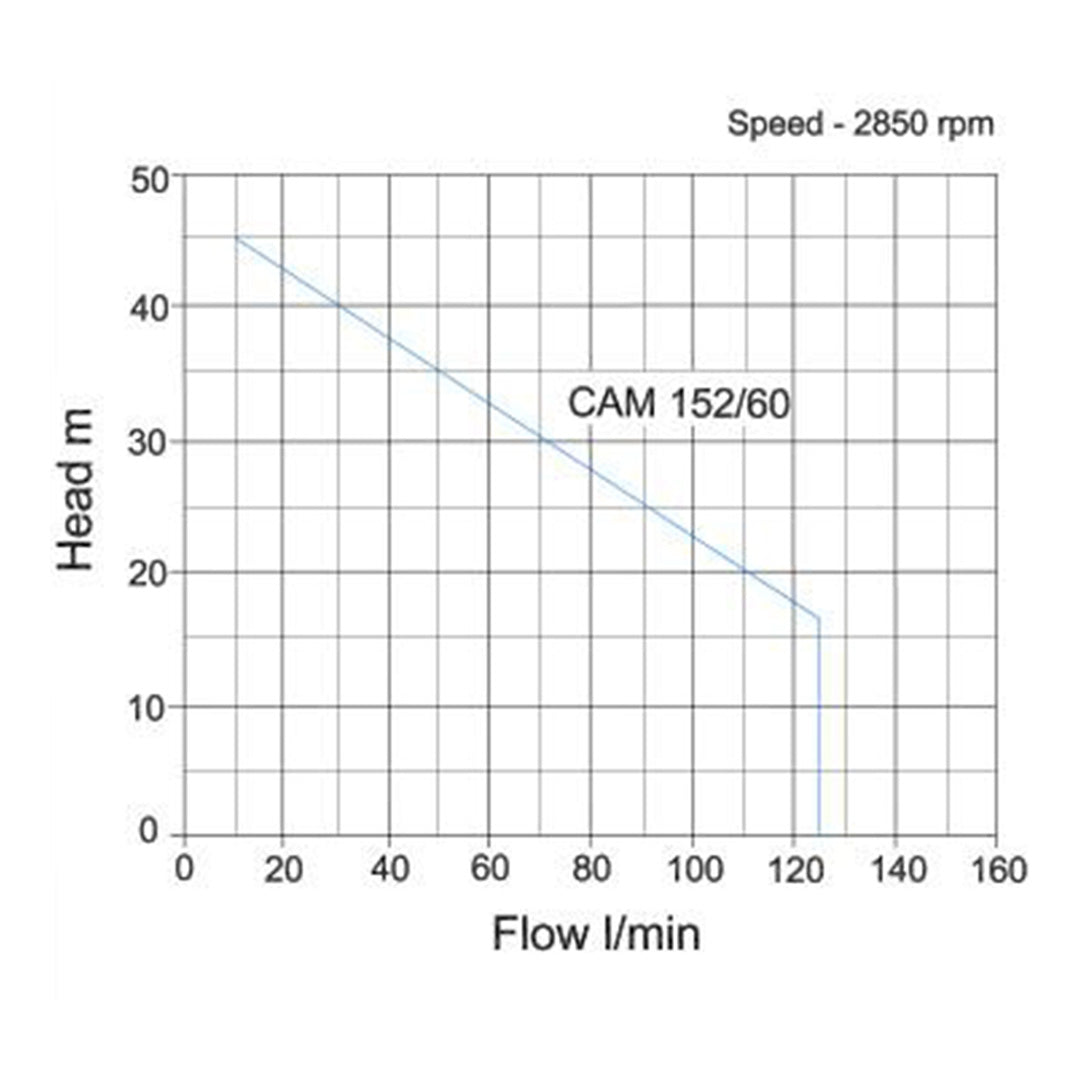

PERFORMANCE CURVE
SPECIFICATIONS

Specifications

Item CodeModelInlet (mm)Outlet (mm)KWVolt (v)Flow (l/min)Head (mtrs)Switch pre-set (bar)Vessel Size (Lts)Width (mm)Length (mm)Height (mm)Dry weight (kg)
19-15-1107CAM152/601¼"1"1.5230V125321.6 (on) 3.2(off)6038074869856

model

w X l X h (mm)

CAM152/60

380x748x698
