BPS Light Duty Flood Pumps

Description

The BPS series have a water cooled, top discharge design for applications where space is limited, operating while partially submerged or during short periods of dry running. Available as manual or with a pendant float switch, for automatic operation. The BPS-100A(V) automatic model incorporates ...

TECHNICAL DATA

  • Outlet (mm): 19 - 50
  • Motor output (kW): 0.08 - 0.40
  • Max head (m): 4 - 9
  • Phases: 1
  • Max flow (I/min): 40 - 220
  • Free passage (mm): 2 - 5
Skip to product information
1 of 10

2 total reviews

Regular price £72.00 GBP
Regular price Sale price £72.00 GBP
Sale Sold out
Excluding VAT
View full details

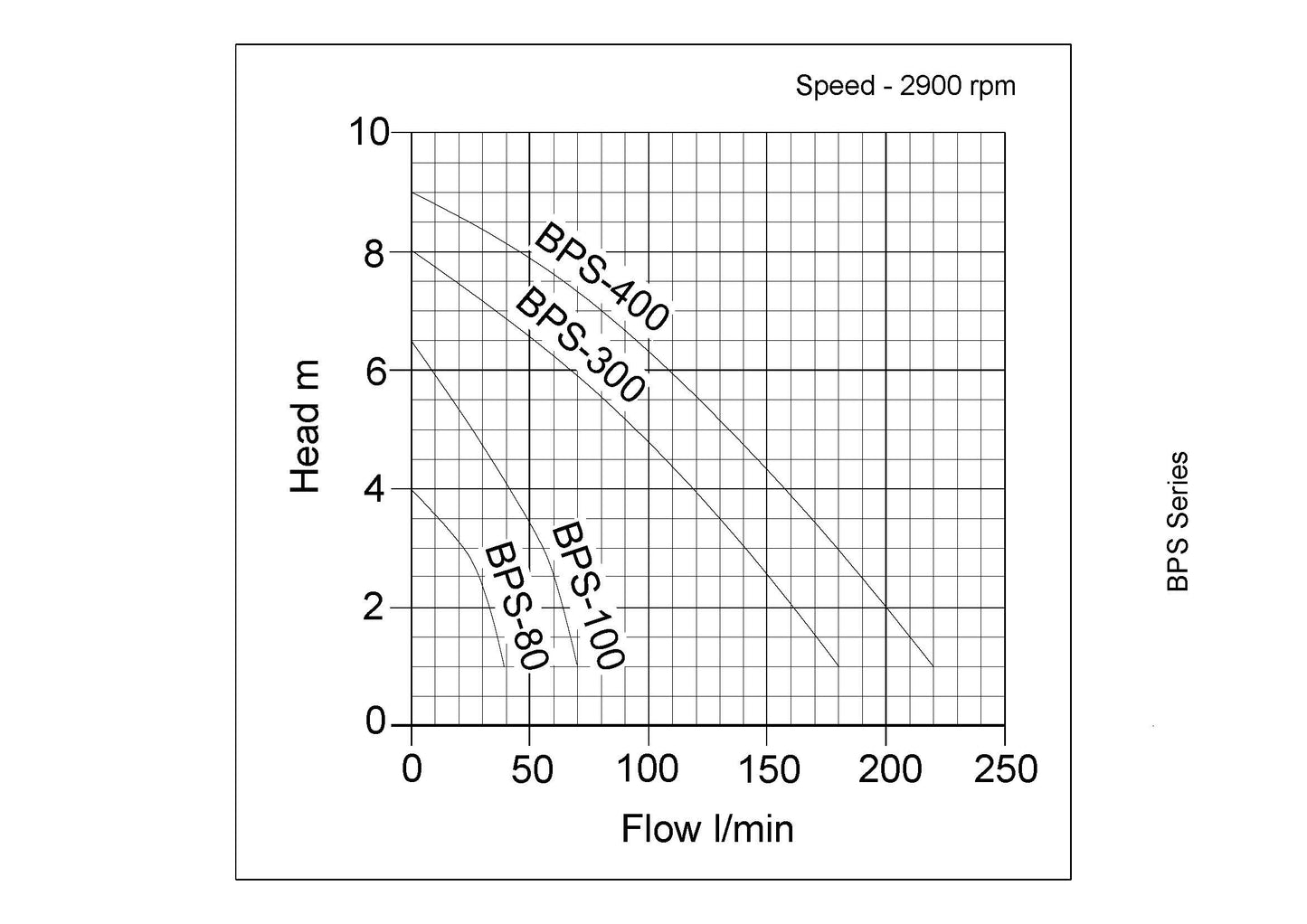

PERFORMANCE CURVE
SPECIFICATIONS

BPS-80(A)

item code model Manual or Auto outlet (mm) kW volt flow (l/min) head (mtrs) free passage (mm) w x l x h (mm) on level * (mm) off level * (mm) dry weight (kgs)
15-10-1096 BPS-80 19 0.08 230 40 136x136x255 1.95
15-10-1073 BPS-80A 19 0.08 230 40 136x136x255 290 90 2.20

*Approximate Liquid Level

BPS-100(A)(V)

item code model Manual or Auto outlet (mm) kW volt flow (l/min) head (mtrs) free passage (mm) w x l x h (mm) on level * (mm) off level * (mm) dry weight (kgs)
15-10-1008 BPS-100 19 & 25 0.10 110 70 6.5 134x155x250 2.50
15-10-1095 BPS-100 19 & 25 0.10 230 70 6.5 134x155x250 2.50
15-10-1076 BPS-100A 19 & 25 0.10 110 70 6.5 134x155x250 300 150 2.70
15-10-1105 BPS-100A 19 & 25 0.10 230 70 6.5 134x155x250 300 150 2.70
15-10-1019 BPS-100V A(V) 19 & 25 0.10 230 70 6.5 134x225x250 190 90 2.90

*Approximate Liquid Level

BPS-300(A)

item code model Manual or Auto outlet (mm) kW volt flow (l/min) head (mtrs) free passage (mm) w x l x h (mm) on level * (mm) off level * (mm) dry weight (kgs)
15-10-1056 BPS-300A 40 0.30 230 180 160x200x365 450 210 6.50

*Approximate Liquid Level

BPS-400(A)

item code model Manual or Auto outlet (mm) kW volt flow (l/min) head (mtrs) free passage (mm) w x l x h (mm) on level * (mm) off level * (mm) dry weight (kgs)
15-10-1047 BPS-400 50 0.40 230 220 160x200x365 7.35
15-10-1054 BPS-400A 50 0.40 230 220 160x200x365 450 210 7.50

*Approximate Liquid Level

model

w X l X h (mm)

BPS-80

136x136x255

BPS-100

134x155x250

BPS-100(V)

134x225x250

BPS-300

160x200x365

BPS-400

160x200x365
