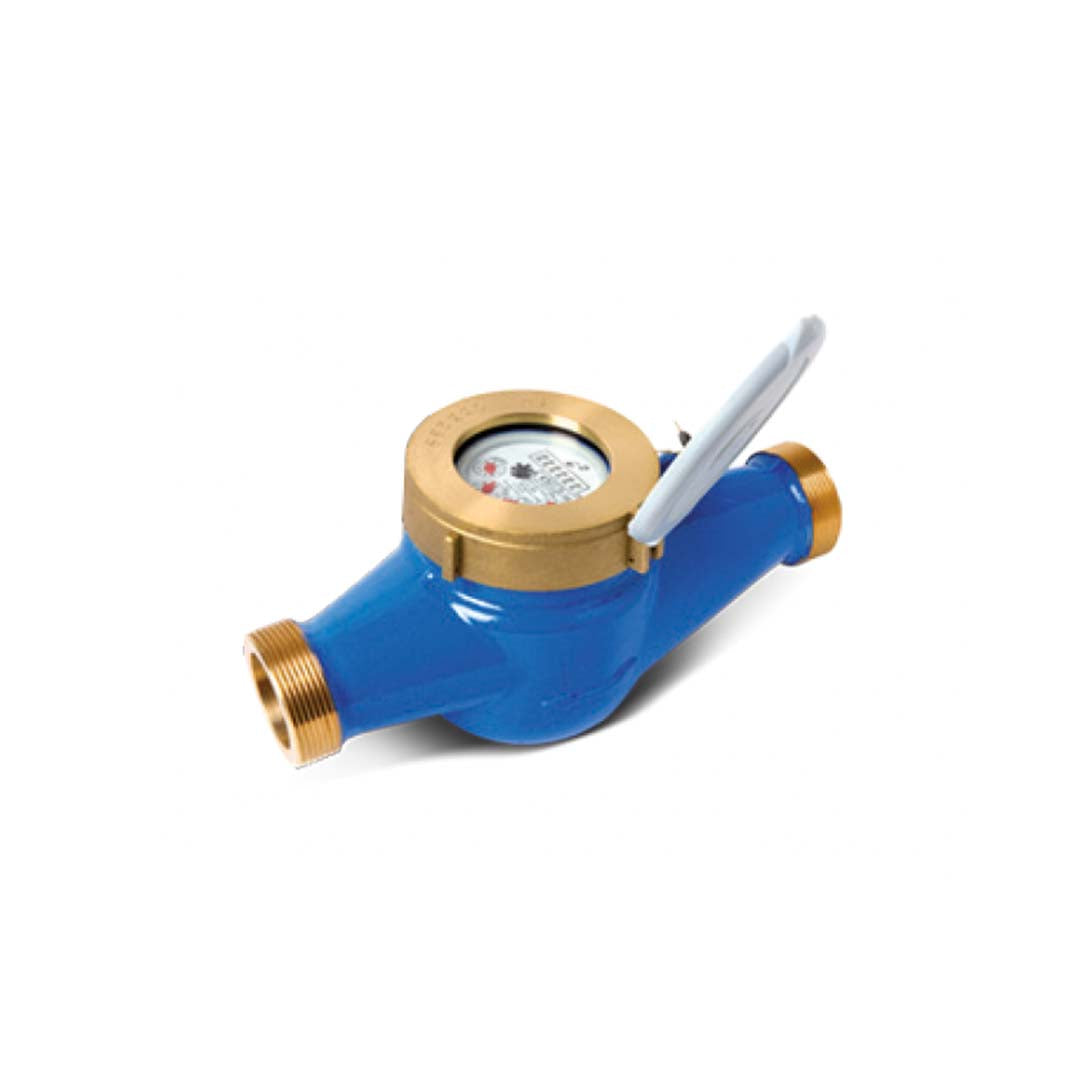

Beta Water Meter WRAS Approved

Description

  The Beta is designed for potable cold water metering in domestic and industrial applications. It can be operated horizontally or vertically. Pulse output available. Certified MID 2004/22/CE Modules B + D or EEC 75/33.

TECHNICAL DATA

  • Bore (BSPM): 1" - 2"
  • Max flow (m³/hr): 7.9 - 31
  • Continuous (m³/hr): 6.3 - 25
  • Min flow (ltr/hour): 79 - 313
  • Multi-jet turbine
  • WRAS Approval Number: 1711362.
  • 1 Temperature class: T30/T50.
  • 6 bar working pressure.
1 1
£147.00 GBP
£147.00 GBP
Sale Sold out
Excluding VAT
View full details
SPECIFICATIONS

Specifications

Item CodeModelbore (BSPM/flange)max flow (m³/hr)continuous (m³/hr)min flow (ltr/hr)length (mm)
12-40-1020BETA 251"8679260
12-40-1014BETA 321 1/4"1310125260
12-40-1027BETA 401 1/2"2016200300
12-40-1026BETA 502"3125313300

model

w X l X h (mm)
