AKM60 Self Priming Peripheral Pump

Description

The AKM60 is a self-priming, peripheral centrifugal pump with a cast iron body. Capable of high heads and pressures in domestic and industrial applications. Optional pressure controller (see here) will provide dry-run protection and automatic operation.

TECHNICAL DATA

  • Outlet (BSPF): 1"
  • Inlet (BSPF): 1"
  • Motor output (kW): 0.45
  • Max head (m): 40
  • Phases: 1
  • Max flow (I/min): 40

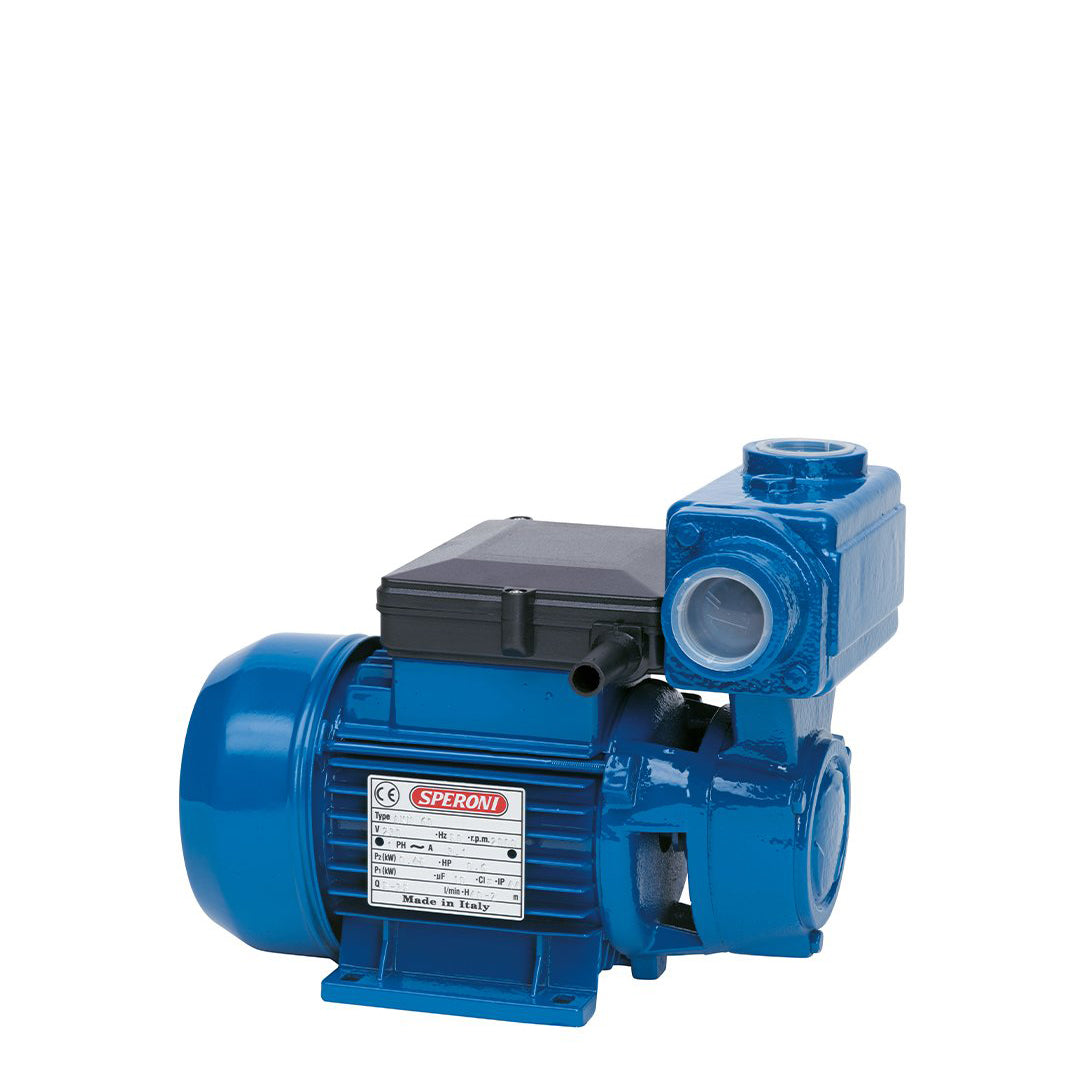

  • Speroni Blue AKM60 Self Priming Peripheral Pump
  • Speroni AKM60 Self Priming Peripheral Pump- pump curve
1 2
£119.00 GBP
£119.00 GBP
Sale Sold out
Excluding VAT
View full details
  • Speroni Blue AKM60 Self Priming Peripheral Pump
  • Speroni AKM60 Self Priming Peripheral Pump- pump curve

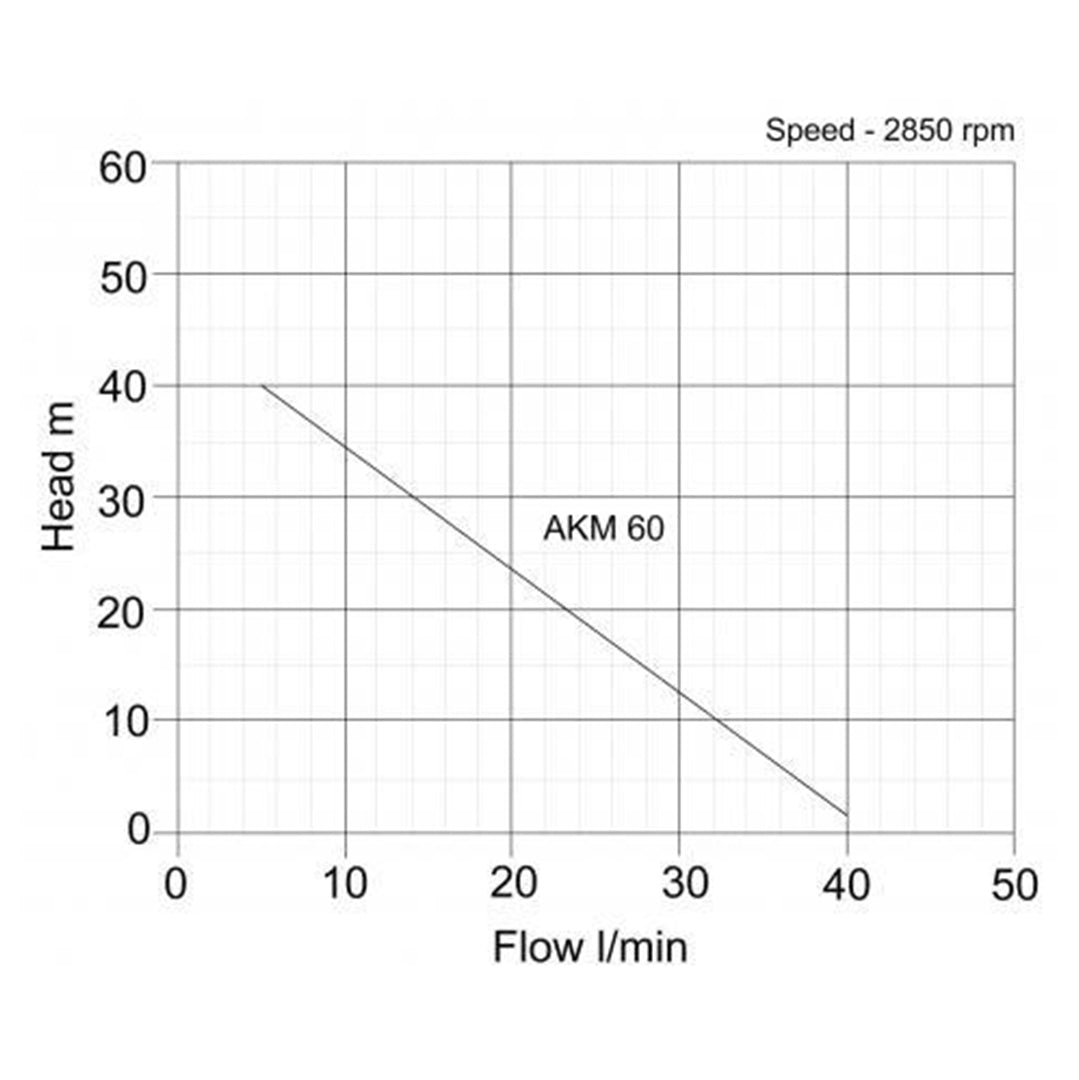

PERFORMANCE CURVE
SPECIFICATIONS

Specifications

Item codeModelOutlet (mm)kWFlow (l/min)Head (metres)Inlet (mm)Width (mm)Length (mm)Height (mm)Dry weight (kg)
19-15-1102AKM 60250.454040251202401907.5

model

w X l X h (mm)

AKM60

120x240x190
