Name: Acuatec High Pressure Well Pumps
Brand: Umbra Pompe
SKU: 22-10-1031
Price: 450.0 GBP
Availability: InStock

Description

The Acuatec series are multi-stage pumps for high pressure, high head pumping in agricultural and industrial applications. They are lubricated and cooled by non-toxic oil. Suitable for pumping potable water and water containing up to 60 g/m³ of suspended solids. All models have integral starting...

TECHNICAL DATA

Outlet (BSPF): 1 1/4"
Motor output (kW): 0.6 - 1.2
Max head (m): 33 - 75
Phases: 1
Max flow (I/min): 90 - 135
Bore hole (size): 5"

1 5

£450.00 GBP

Sale Sold out

Excluding VAT

Product variants

Quantity

View full details

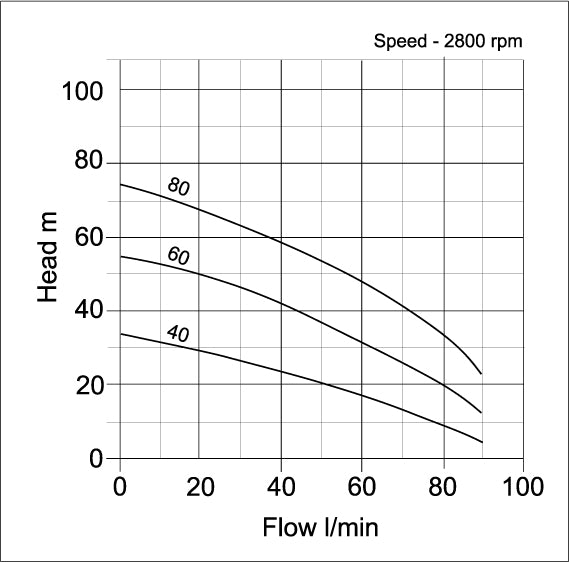

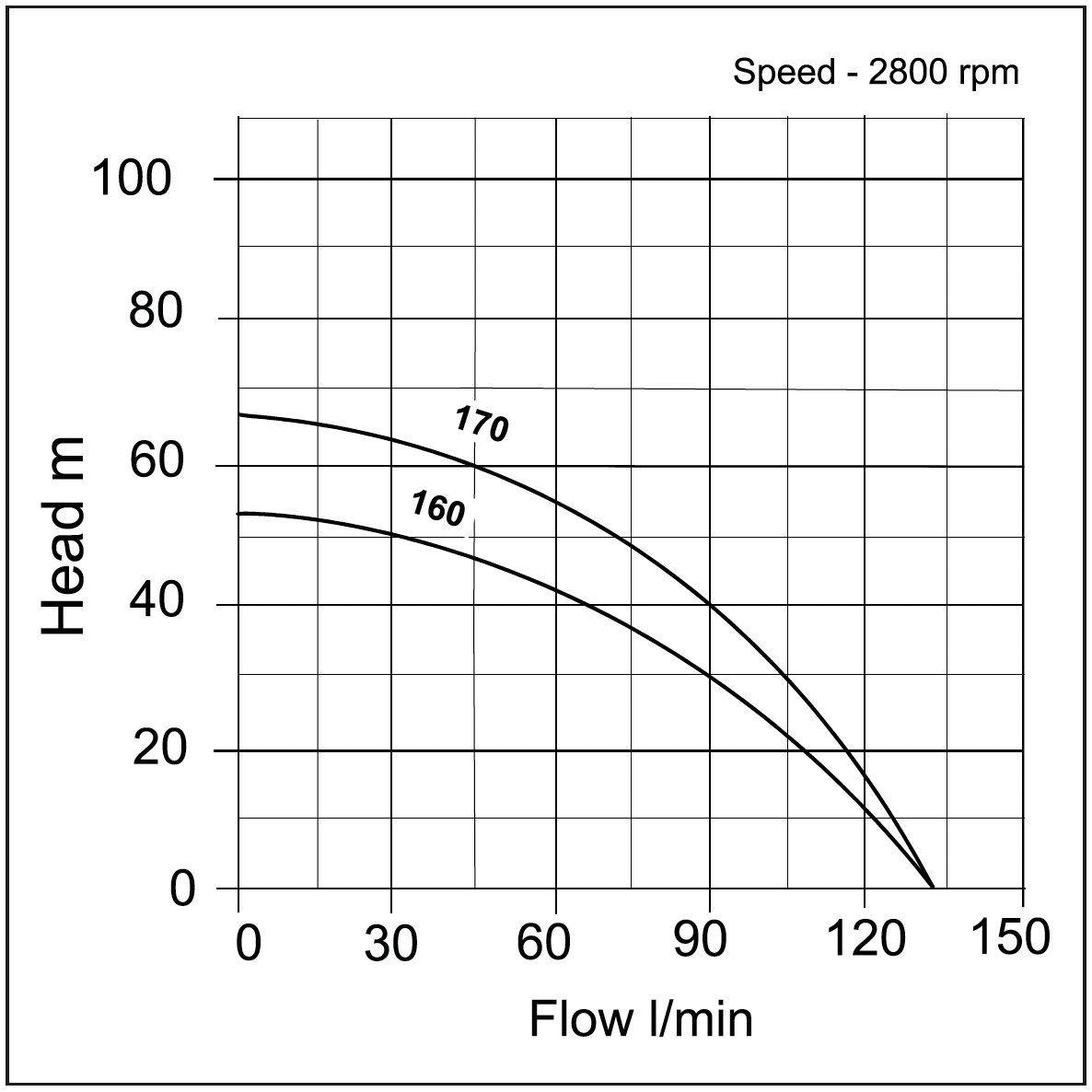

PERFORMANCE CURVE

SPECIFICATIONS

Catalogue

Acuatec Catalogue Page

Tsurumi Catalogue 2024 - Page 25

Specifications

item code	model	Manual or Auto	outlet (BSPF)	kW	volt	flow (l/min)	head (mtrs)	dia x h (mm)	bore hole (size)	dry weight (kgs)
22-10-1031	Acuatec 40	M	1¼"	0.6	230	90	33	Ø127x420	5"	12.0
22-10-1004	Acuatec 40	A	1¼"	0.6	230	90	33	Ø127x420	5”	12.3
22-10-1015	Acuatec 60	M	1¼"	0.75	230	90	55	Ø127x490	5”	13.0
22-10-1019	Acuatec 60	A	1¼"	0.75	230	90	55	Ø127x490	5”	13.3
22-10-1034	Acuatec 80	M	1¼"	1.2	230	90	75	Ø127x570	5”	15.0
22-10-1021	Acuatec 80	A	1¼"	1.2	230	90	75	Ø127x570	5”	15.3
22-10-1041	Acuatec 160	M	1¼"	0.9	230	135	53	Ø127x605	5”	14.0
22-10-1043	Acuatec 160	A	1¼"	0.9	230	135	53	Ø127x605	5”	14.3
22-10-1042	Acuatec 170	M	1¼"	1.2	230	135	68	Ø127x649	5”	15.0
22-10-1044	Acuatec 170	A	1¼"	1.2	230	135	68	Ø127x649	5”	15.3
