Acuasub Submersible Multi Stage Borehole Pumps

Description

The Acuasub series are multi-stage pumps for high pressure, high head pumping in agricultural and industrial applications. They are lubricated and cooled by non-toxic oil. Suitable for pumping potable water and water containing up to 60 g/m³ of suspended solids. Supplied with an external, inli...

TECHNICAL DATA

  • Outlet (FBSP): 1 1/4"
  • Motor output (kW): 0.75 - 1.1
  • Max head (m): 70 - 140
  • Phases: 1
  • Max flow (I/min): 45 - 90
  • Bore hole (size): 4"

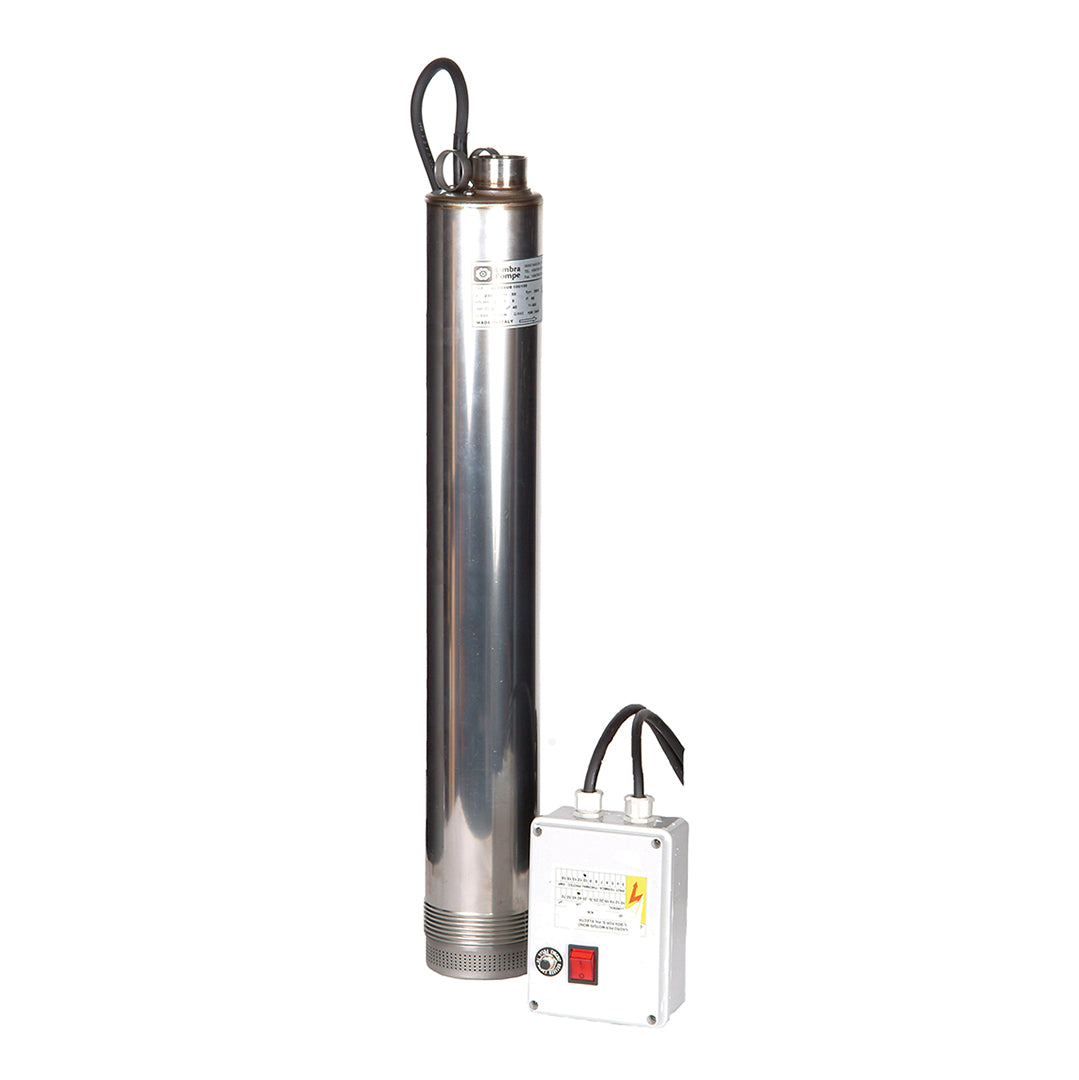

  • Umbra Pompe Acuasub Submersible Multi Stage Borehole Pump

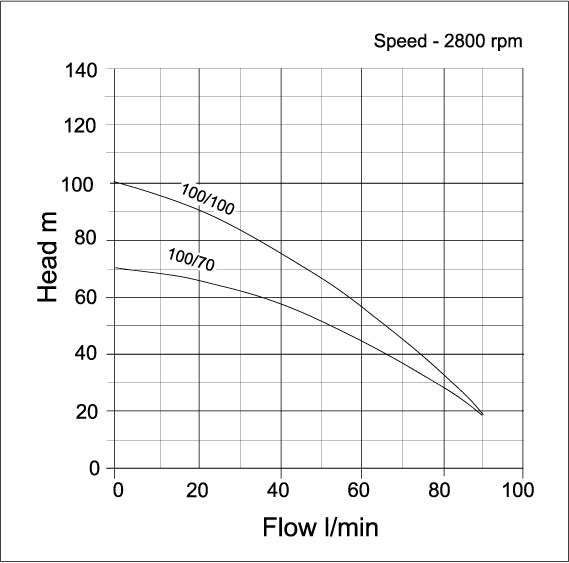

  • Acuasub Submersible Multi Stage Borehole Pumps - PUMP CURVE GRAPH 1

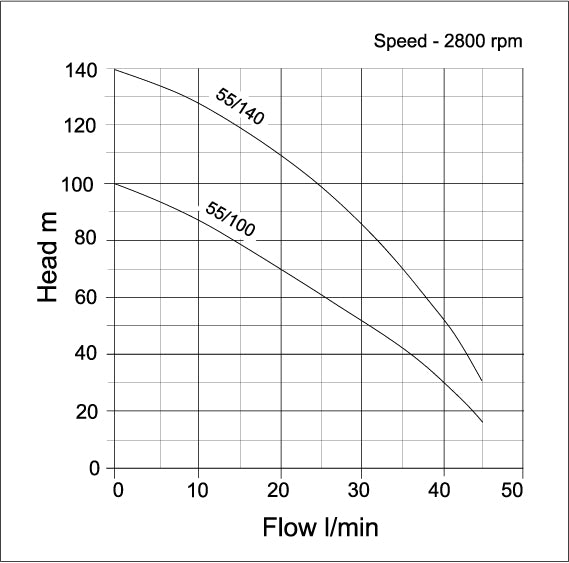

  • Acuasub Submersible Multi Stage Borehole Pumps - PUMP CURVE GRAPH 2
1 3
£586.00 GBP
£586.00 GBP
Sale Sold out
Excluding VAT
View full details
  • Umbra Pompe Acuasub Submersible Multi Stage Borehole Pump
  • Acuasub Submersible Multi Stage Borehole Pumps - PUMP CURVE GRAPH 1
  • Acuasub Submersible Multi Stage Borehole Pumps - PUMP CURVE GRAPH 2
PERFORMANCE CURVE
SPECIFICATIONS

Acuasub

Item Code

Model

Outlet (FBSP)

kW

Volt (V)

Flow (l/min)

Head (metres)

Dia x H (mm)

Bore hole (size)

Dry weight (kg)

22-10-1030

Acuasub 55/100

1 1/4"

0.75

230

45

100

∅99 x 672

4"

13

22-10-1005

Acuasub 55/140

1 1/4"

1.1

230

45

140

∅99 x 830

4"

14

22-10-1029

Acuasub 100/70

1 1/4"

0.75

230

90

70

∅99 x 565

4"

13

22-10-1010

Acuasub 100/100

1 1/4"

1.1

230

90

100

∅99 x 680

4"

15

model

w X l X h (mm)

Acuasub 55/100

99x99x672

Acuasub 55/140

99x99x830

Acuasub 100/70

99x99x565

Acuasub 100/100

99x99x680
