Image from Product Description

2C(M) Twin Stage Centrifugal Pumps

Description

The 2C(M) series are non-self priming, twin-stage, mono-bloc, centrifugal pumps. For the pumping of clean water only they are suitable for sprinkling and pressurisation in industrial and agricultural applications. Optional pump control and energy management systems are available (see here).

TECHNICAL DATA

  • Outlet (BSPF): 1" - 1 1/4"
  • Inlet (BSPF): 1 1/4" - 1 1/2"
  • Motor output (kW): 1.1 - 4
  • Max head (m): 56 - 88
  • Phases: 1 & 3
  • Max flow (I/min): 125 - 200

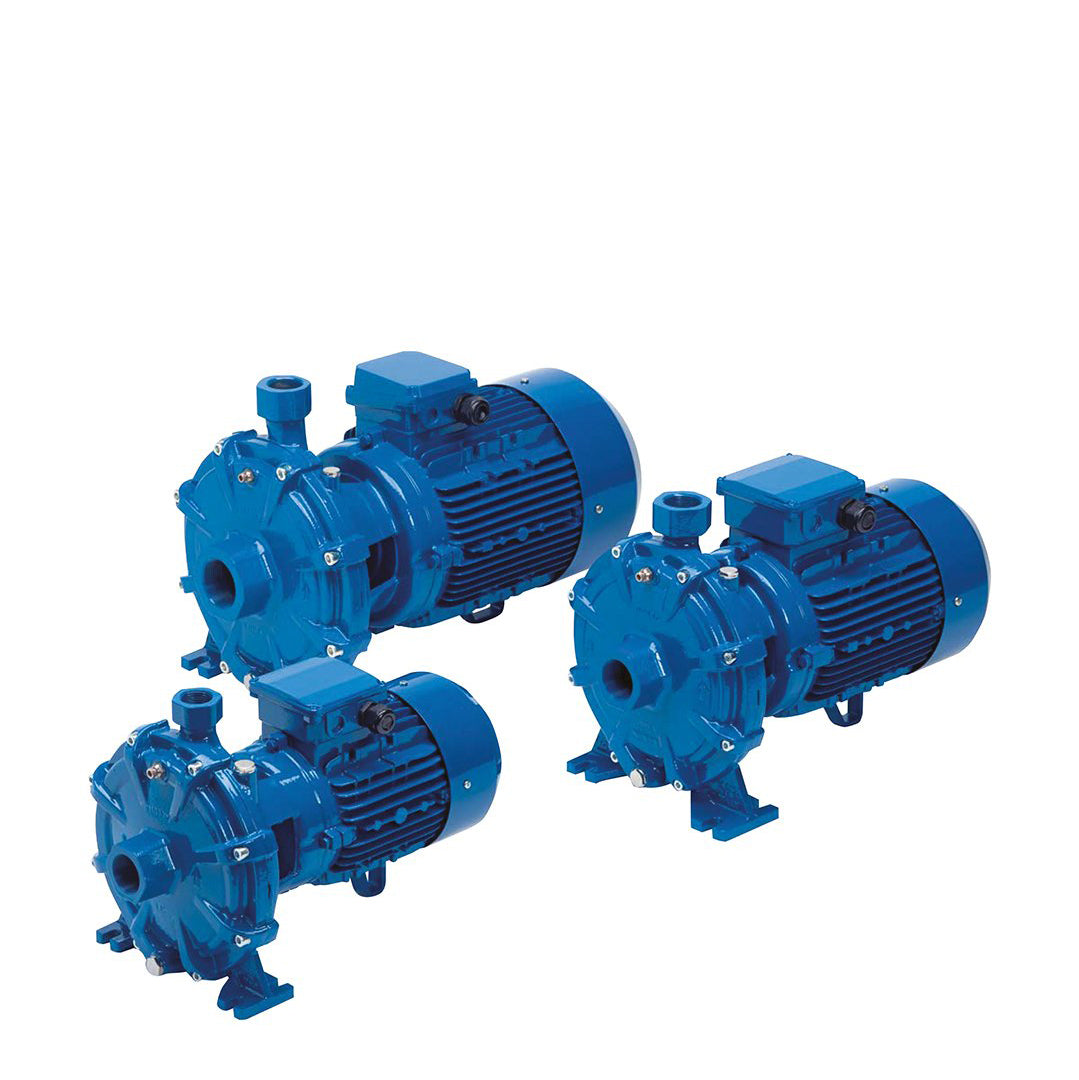

  • Speroni 2C,2CM Twin Stage Centrifugal Pumps- blue
  • Speroni 2C,2CM Twin Stage Centrifugal Pumps- pump curve graph
1 2
£417.00 GBP
£417.00 GBP
Sale Sold out
Excluding VAT
View full details
  • Speroni 2C,2CM Twin Stage Centrifugal Pumps- blue
  • Speroni 2C,2CM Twin Stage Centrifugal Pumps- pump curve graph

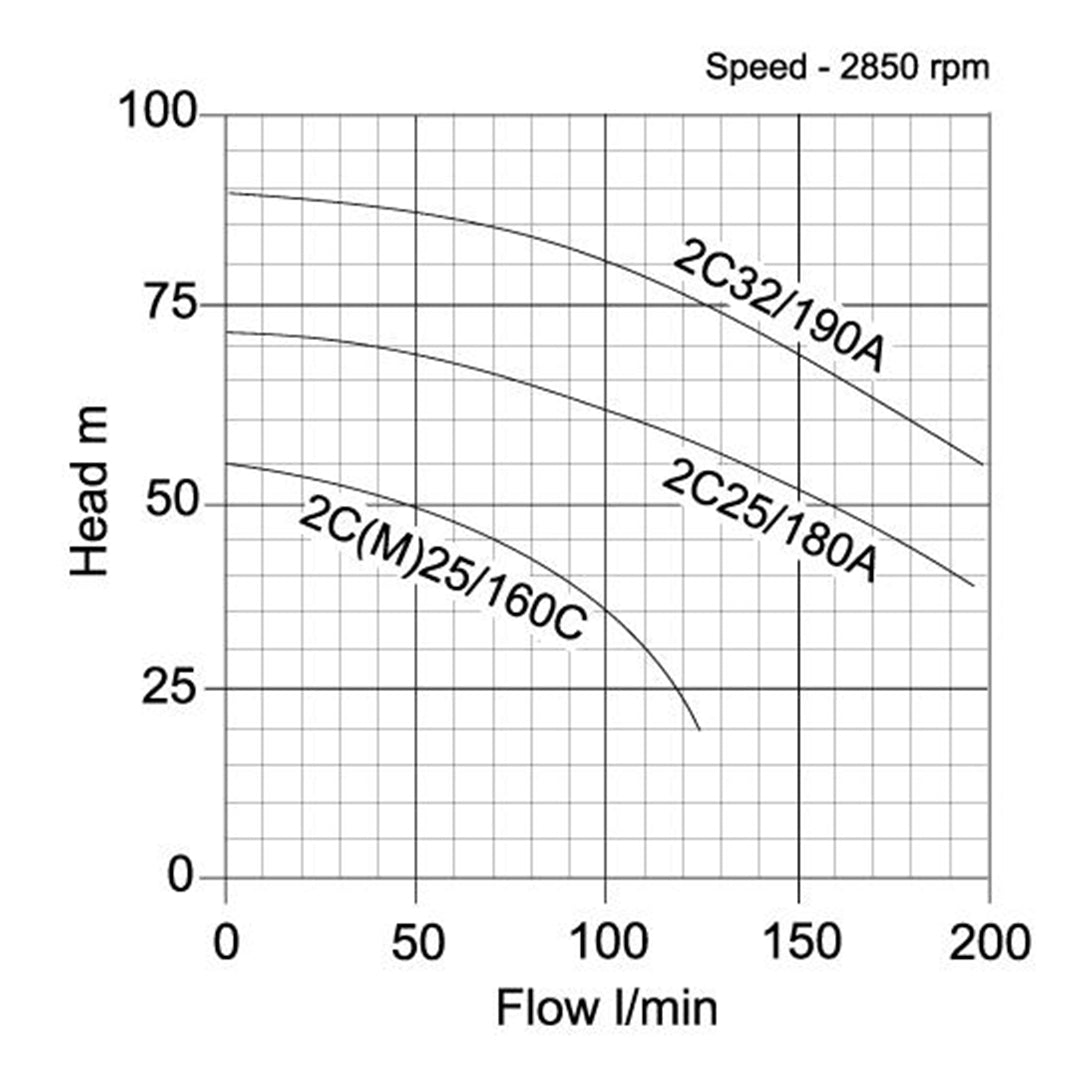

PERFORMANCE CURVE
SPECIFICATIONS

2CM 25/160C

Item code

Model

Inlet (BSPF)

Outlet (BSPF)

kW

Volt (v)

Flow (l/min)

Head (metres)

Width (mm)

Length (mm)

Height (mm)

Dry weight (kg)

19-15-1280

 2CM 25/160C 1 1/4"

1"

1.1

230

125

56

222

440

265

23

2C 25/160C

Item codeModelInlet (BSPF)Outlet (BSPF)kWVolt (V)Flow (l/min)Head (mtrs)Width (mm)Length (mm)Height (mm)Dry weight (kg)
19-15-11112C 25/160C1 1/4"1"1.14001255622240026523

2C 25/180A

Item codeModelInlet (BSPF)Outlet (BSPF)kWVolt (v)Flow (l/min)Head (mtrs)Width (mm)Length (mm)Height (mm)Dry weight (kg)
19-15-11832C 25/180A1 1/4"1"34002007324644029041

2C 32/190A

Item codeModelInlet (BSPF)Outlet (BSPF)kWVolt (v)Flow (l/min)Head (mtrs)Width (mm)Length (mm)Height (mm)Dry weight (kg)
19-15-12672C 32/190A1 1/2"1 1/4"44002008827249534053

2CM 25/160B

Item codeModelOutlet (mm)kWVolt (v)Flow (l/min)
EB-0372CM 25/160B1 1/4" x 1"1.5230160

model

w X l X h (mm)

2CM 25/160

222x400x265

2C 25/160C

222x400x265

2C 25/180A

246x440x290

2C 32/190A

272x495x340
